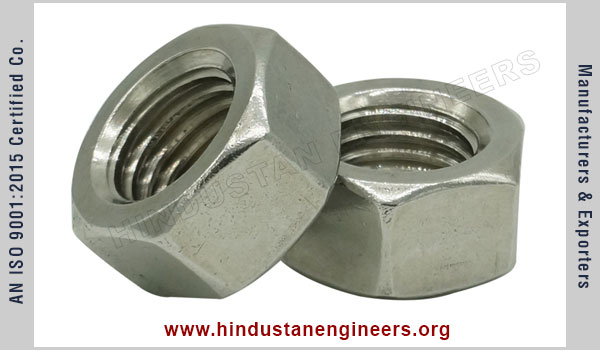

ASTM F594 Nuts
ASTM F594 Nuts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
This ASTM F594 specification covers the requirements for stainless steel nuts 0.25 to 1.50 in., inclusive, in nominal diameter in a number of alloys in common use and intended for service applications requiring general corrosion resistance. Seven groups of stainless steel alloys are covered, including ten austenitic, two ferritic, four martensitic, and one precipitation hardening.
Groups
| Alloy Group | Alloy Designation | Alloy Type |
|---|---|---|
| 1 | 303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se | Austenitic |
| 2 | 316, 316L | Austenitic |
| 3 | 321, 347 | Austenitic |
| 4 | 430, 430F | Ferritic |
| 5 | 410, 416, 416Se | Martensitic |
| 6 | 431 | Martensitic |
| 7 | 630 (17-4) | Precipitation Hardening |
Suitable bolts, hex cap screws, and studs for use with nuts included in this specification are covered by Specification F593. Unless otherwise specified, all bolts, hex cap screws, and studs used with these nuts shall conform to the requirements of Specification ASTM F593 and shall be of the same alloy group.
Chemical Properties
| Element | Alloy Group 1, Type 304 | Alloy Group 2, Type 316 |
|---|---|---|
| Carbon | 0.08% | 0.08% |
| Manganese | 2.00% | 2.00% |
| Phosphorus | 0.045% | 0.045% |
| Sulfur | 0.030% | 0.030% |
| Silicon | 1.00% | 1.00% |
| Chromium | 18.0 to 20.0% | 16.0 to 18.0% |
| Nickel | 8.0 to 10.5% | 10.0 to 14.0% |
| Copper | 1.00% | |
| Molybdenum | 2.00 to 3.00% |
All-Pro Threaded manufactures ASTM F594 nuts in all diameters in house and can meet your specific delivery schedule domestically or internationally on the specialty nuts.
Mechanical Properties
| Alloy Group | Condition | Marking | Diameter Range | Proof Stress, Hex Nuts, ksi | Proof Stress, Heavy Hex Nuts, ksi | Rockwell Hardness |
|---|---|---|---|---|---|---|
| 1 | AF | F594A | 1/4 to 1-1/2 | 70 | 76 | B85 max |
| A | F594B | 1/4 to 1-1/2 | 75 | 81 | B65 to 95 | |
| CW1 | F594C | 1/4 to 5/8 | 100 | 108 | B95 to C32 | |
| CW2 | F594D | 3/4 to 1-1/2 | 85 | 92 | B80 to C32 | |
| 2 | AF | F594E | 1/4 to 1-1/2 | 70 | 76 | B85 max |
| A | F594F | 1/4 to 1-1/2 | 75 | 81 | B65 to 95 | |
| CW1 | F594G | 1/4 to 5/8 | 100 | 108 | B95 to C32 | |
| CW2 | F594H | 3/4 to 1-1/2 | 85 | 92 | B80 to C32 |
