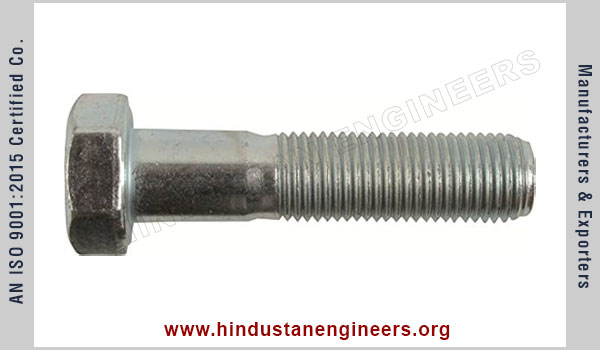

DIN 960 / ISO 8765 / EN 28765 Hex Bolts

DIN 960 / ISO 8765 / EN 28765 Hex Bolts

Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org



DIN 960 / ISO 8765

Steel Grades: 8.8, 10.9

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

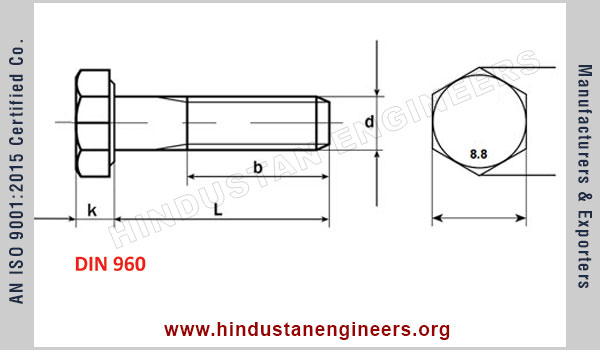

dxP M8x1 M10x1 M12x1.25 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5

M10x1.25 M12x1.5

M18x2 M20x2 M22x2 M24x2
B      1 22 26 30 34 38 42 46 50 54
B      2 28 32 36 40 44 48 52 56 60
k 5.3 6.4 7.5 8.8 10 11.5 12.5 14 15
s 13 17/16* 19/18* 22/21* 24 27 30 32/34* 36
L WEIGHT IN KG/1000 PCS
40 20.4 35






45 22.3 38.1 53.8





50 24.3 41.2 58.2 83.3




55 26.3 44.2 62.7 89.3 118



60 28.3 47.3 67.1 95.4 126



65 30.2 50.4 71.5 101 134 174 225

70 32.2 53.5 76 107 142 184 237 287
75 34.2 56.6 80.4 113 150 194 250 302
80 36.1 59.6 84.9 120 157 204 262 317 393
85 38.1 62.7 89.3 126 165 214 274 332 410
90 40.1 65.8 93.7 132 173 224 287 347 428
95 42.1 68.9 98.1 138 181 234 299 362 446
100 44 72 102.6 144 189 244 311 376 464
110
78.2 111.5 156 205 264 336 406 499
120
84.3 120.3 168 221 284 360 436 535
130
90 128 179 235 302 384 464 568
140
96.2 136.9 191 251 322 409 494 603
150
102.3 145.7 203 267 342 433 524 639
160

154.6 215 282 362 458 553 674
170

163.5 227 298 382 483 583 710
180

172.4 239 314 402 507 613 745
190


251 330 422 532 643 781
200


264 345 442 556 673 816
