DIN 933 SZ Hex Bolt / ISO 4017 Hex Bolt
DIN 933 SZ Hex Bolt / ISO 4017 Hex Bolt
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
Dimensions in mm.

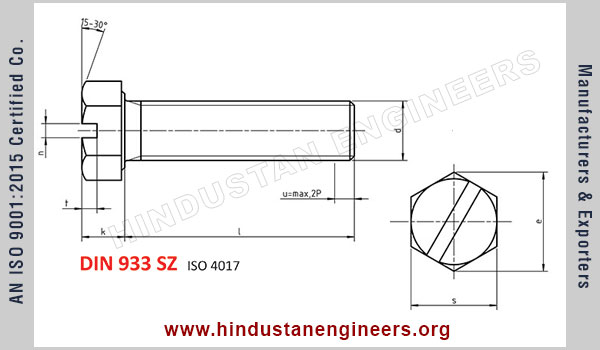

Sizes and characteristics of hexagon head bolts, slotted and full thread DIN 933 SZ
| d | M3 | M4 | M5 | M6 | M8 |
|---|---|---|---|---|---|
| k | 2 | 2,8 | 3,5 | 4 | 5,3 |
| s | 5,5 | 7 | 8 | 10 | 13 |
| t | 0,8 | 1,1 | 1,4 | 1,6 | 2,1 |
| n | 0,8 | 1 | 1,2 | 1,6 | 2 |
