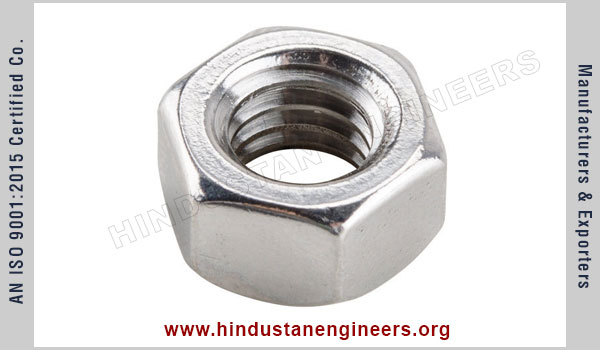

DIN 934/ISO 4032 Hex Nuts
DIN 934/ISO 4032 Hex Nuts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
DIN 934 / ISO 4032
Steel Grades: 4, 8, 10
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

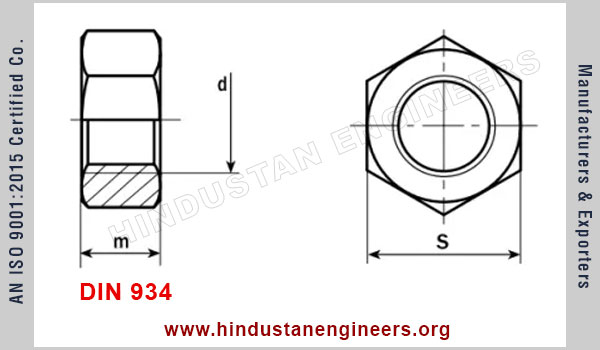

Dimensions / Weight Chart
| d | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 |
| p | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| s | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 |
| m | 10 | 11 | 13 | 17/16* | 19/18* | 22/21* | 24 | 27 |
| KG/1000 PCS | 2.50 | 3.12 | 5.20 | 11.60 | 17.30 | 25.00 | 33.30 | 49.40 |
| d | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| p | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 |
| s | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 |
| m | 30 | 32/34* | 36 | 41 | 46 | 50 | 55 | 60 |
| KG/1000 PCS | 64.40 | 79 | 110 | 165 | 223 | 288 | 393 | 502 |
| d | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 |
| p | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 |
| s | 34 | 36 | 38 | 42 | 45 | 48 | 51 | 54 |
| m | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| KG/1000 PCS | 652 | 800 | 977 | 1,220 | 1,420 | 1,690 | 1,980 | 2,300 |
