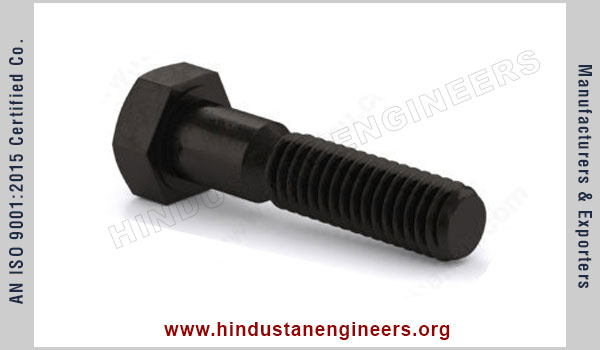

DIN 6914 / ISO 7412 Hex Bolts
DIN 6914 / ISO 7412 Hex Bolts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
DIN 6914 / ISO 7412
Steel Grades: 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

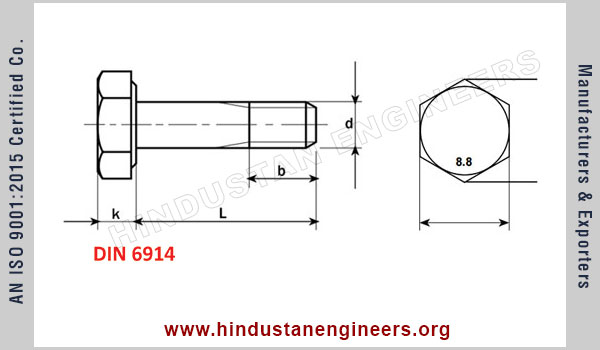

| Nom. Dia. (d) | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 | ||
| Thread Pitch | 1.75 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | ||
| Thread Length (b) | L < 125mm | 21 | 26 | 31 | 32 | 34 | 37 | 40 | 48 | |
| 125-200mm | 23 | 28 | 33 | 34 | 37 | 39 | 42 | 50 | ||
| K | Nominal | 8 | 10 | 13 | 14 | 15 | 17 | 19 | 23 | |
| s | Nominal | 22 | 27 | 32 | 36 | 41 | 46 | 50 | 60 | |
| L | WEIGHT IN KG/1000 PCS | |||||||||
| 30 | 49.10 | |||||||||
| 35 | 53.60 | |||||||||
| 40 | 58.00 | 105.00 | ||||||||
| 45 | 62.10 | 113.00 | 188.00 | |||||||
| 50 | 66.60 | 121.00 | 200.00 | 257.00 | ||||||
| 55 | 71.00 | 129.00 | 212.00 | 272.00 | ||||||
| 60 | 75.40 | 137.00 | 225.00 | 286.00 | 362.00 | |||||
| 65 | 79.90 | 145.00 | 237.00 | 301.00 | 380.00 | |||||
| 70 | 84.30 | 153.00 | 249.00 | 316.00 | 398.00 | 532.00 | ||||
| 75 | 88.80 | 160.00 | 262.00 | 331.00 | 415.00 | 554.00 | 701.00 | |||
| 80 | 93.20 | 168.00 | 274.00 | 346.00 | 433.00 | 576.00 | 728.00 | |||
| 85 | 97.60 | 176.00 | 286.00 | 361.00 | 451.00 | 599.00 | 756.00 | 1184.0 | ||
| 90 | 102.00 | 184.00 | 298.00 | 375.00 | 467.00 | 621.00 | 784.00 | 1224.0 | ||
| 95 | 107.00 | 192.00 | 310.00 | 390.00 | 485.00 | 644.00 | 812.00 | 1264.0 | ||
| 100 | 199.00 | 322.00 | 405.00 | 503.00 | 665.00 | 838.00 | 1304.0 | |||
| 105 | 207.00 | 335.00 | 420.00 | 520.00 | 688.00 | 865.00 | 1336.0 | |||
| 110 | 215.00 | 347.00 | 435.00 | 538.00 | 710.00 | 893.00 | 1376.0 | |||
| 115 | 223.00 | 359.00 | 450.00 | 556.00 | 732.00 | 921.00 | 1415.0 | |||
| 120 | 231.00 | 372.00 | 465.00 | 574.00 | 755.00 | 949.00 | 1455.0 | |||
| 125 | 239.00 | 384.00 | 479.00 | 591.00 | 777.00 | 976.00 | 1495.0 | |||
| 130 | 247.00 | 396.00 | 494.00 | 609.00 | 800.00 | 1001.0 | 1535.0 | |||
| 135 | 409.00 | 509.00 | 627.00 | 822.00 | 1032.0 | 1575.0 | ||||
| 140 | 421.00 | 524.00 | 645.00 | 845.00 | 1059.0 | 1615.0 | ||||
| 145 | 433.00 | 539.00 | 662.00 | 867.00 | 1087.0 | 1655.0 | ||||
| 150 | 446.00 | 554.00 | 680.00 | 890.00 | 1115.0 | 1695.0 | ||||
| 155 | 458.00 | 569.00 | 698.00 | 912.00 | 1143.0 | 1735.0 | ||||
| 160 | 584.00 | 716.00 | 935.00 | 1170.0 | 1775.0 | |||||
| 165 | 599.00 | 733.00 | 957.00 | 1198.0 | 1815.0 | |||||
| 170 | 751.00 | 979.00 | 1226.0 | 1855.0 | ||||||
| 175 | 769.00 | 1002.0 | 1254.0 | 1895.0 | ||||||
| 180 | 787.00 | 1024.0 | 1281.0 | 1935.0 | ||||||
| 185 | 804.00 | 1047.0 | 1309.0 | 1974.0 | ||||||
| 190 | 822.00 | 1069.0 | 1337.0 | 2014.0 | ||||||
| 195 | 840.00 | 1092.0 | 1365.0 | 2054.0 | ||||||
| 200 | 1114.0 | 1392.0 | 2091.0 | |||||||
