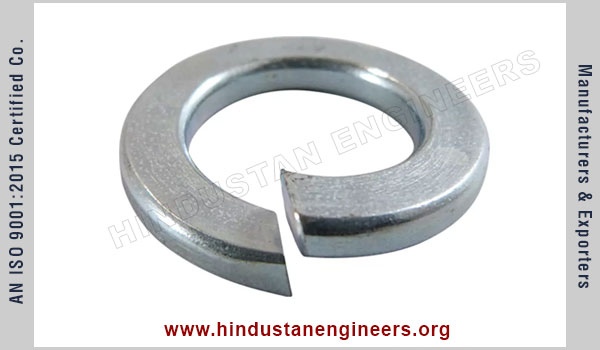

DIN 127A Spring Washer

Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org

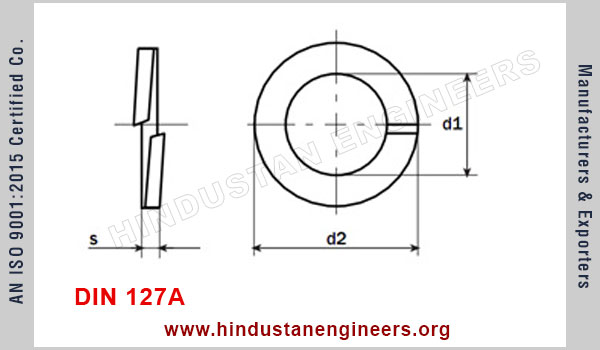

DIN 127A

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

SIZE	"d1"MIN	"d1"MAX	"d2"MAX	"b"NOMINAL	"b"MAX	"b"MIN	"s"NOMINAL	"s"MAX	"s"MIN	"h"MIN	"h"MAX	"k"	"r"	WEIGHT PER 1000 PCS IN KGS
M3	3.1	3.4	6.2	1.3	1.4	1.2	0.8	0.9	0.7	1.9	2.1	0.15	0.2	0.11
M3.5	3.6	3.9	6.7	1.3	1.4	1.2	0.8	0.9	0.7	1.9	2.2	0.15	0.2	0.12
M4	4.1	4.4	7.6	1.5	1.6	1.4	0.9	1	0.8	2.1	2.5	0.15	0.2	0.18
M5	5.1	5.4	9.2	1.8	1.9	1.7	1.2	1.3	1.1	2.7	3.2	0.15	0.2	0.36
M6	6.1	6.5	11.8	2.5	2.65	2.35	1.6	1.7	1.5	3.6	4.2	0.2	0.3	0.83
M7	7.1	7.5	12.8	2.5	2.65	2.35	1.6	1.7	1.5	3.6	4.2	0.2	0.3	0.93
M8	8.1	8.5	14.8	3	3.15	2.85	2	2.1	1.9	4.6	5.4	0.3	0.5	1.6
M10	10.2	10.7	18.1	3.5	3.7	3.3	2.2	2.35	2.05	5	5.9	0.3	0.5	2.53
M12	12.2	12.7	21.1	4	4.2	3.8	2.5	2.65	2.35	5.8	6.8	0.4	1	3.82
M14	14.2	14.7	24.1	4.5	4.7	4.3	3	3.15	2.85	6.8	8	0.4	1	6.01
M16	16.2	17	27.4	5	5.2	4.8	3.5	3.7	3.3	7.8	9.2	0.4	1	8.91
M18	18.2	19	29.4	5	5.2	4.8	3.5	3.7	3.3	7.8	9.2	0.4	1	9.73
M20	20.2	21.2	33.6	6	6.2	5.8	4	4.2	3.8	8.8	10.4	0.4	1	15.2
M22	22.5	23.5	35.9	6	6.2	5.8	4	4.2	3.8	8.8	10.4	0.4	1	16.5
M24	24.5	25.5	40	7	7.25	6.75	5	5.2	4.8	11	13	0.5	1.6	26.2
M27	27.5	28.5	43	7	7.25	6.75	5	5.2	4.8	11	13	0.5	1.6	28.7
M30	30.5	31.7	48.2	8	8.25	7.75	6	6.2	5.8	13.6	16.1	0.8	1.6	44.3
M36	36.5	37.7	58.2	10	10.25	9.75	6	6.2	5.8	13.6	16.1	0.8	1.6	67.3
M39	39.5	40.7	61.2	10	10.25	9.75	6	6.2	5.8	13.6	16.1	0.8	1.6	71.7
M42	42.5	43.7	68.2	12	12.25	11.75	7	7.25	6.75	15.6	18.4	0.8	2	111
M45	45.5	46.7	71.2	12	12.25	11.75	7	7.25	6.75	15.6	18.4	0.8	2	117
M48	49	50.5	75	12	12.25	11.75	7	7.25	6.75	15.6	18.4	0.8	2	123
M52	53	54.5	83	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	182
M56	57	58.5	87	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	193
M60	61	62.5	91	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	203
M64	65	66.5	95	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	218
M68	69	70.5	99	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	228
M72	73	74.5	103	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	240
M80	81	82.5	111	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	262
M90	91	92.5	121	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	290
M100	101	102.5	131	14	14.25	13.75	8	8.25	7.75	18	21.2	1	2	318
