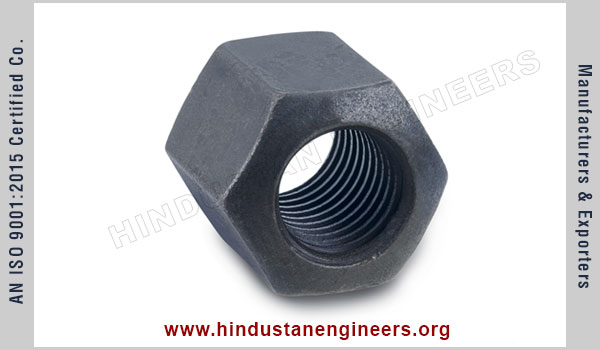

DIN 6330 Hex Nuts
DIN 6330 Hex Nuts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
DIN 6330
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
s - size of the hexagon
m - height of the nut
d - the nominal diameter of the thread
d1 - diameter of the chamfer
r - radius
DIN 6330 Dimensions for Hexagon Nuts
| d | d1 | da | e | m | r | s | Approx. Mass (7,85 kg/dm3) per 1000 units, in kg |
|
|---|---|---|---|---|---|---|---|---|
| h14 | max | min | js15 | Limit deviatios | ||||
| M6 | 7 | 7 | 11.05 | 9 | 9 | 10 | h13 | 5 |
| M8 | 9 | 9 | 14.38 | 12 | 11 | 13 | h13 | 9.6 |
| M10 | 11.5 | 11 | 17.77 | 15 | 15 | 16 | h13 | 21 |
| M12 | 14 | 13 | 20.03 | 18 | 17 | 18 | h13 | 31.5 |
| M16 | 18 | 17 | 26.75 | 24 | 22 | 24 | h13 | 61 |
| M20 | 22 | 21 | 33.53 | 30 | 27 | 30 | h13 | 120 |
| M24 | 26 | 25 | 39.98 | 36 | 32 | 36 | h14 | 206 |
| M30 | 32 | 31 | 51.28 | 45 | 41 | 46 | h14 | 419 |
| M36 | 38 | 37 | 61.31 | 54 | 50 | 55 | h14 | 715 |
| M42 | 44 | 43 | 72.61 | 63 | 58 | 65 | h14 | 1170 |
| M48 | 52 | 50 | 83.91 | 72 | 67 | 75 | h14 | 1800 |
