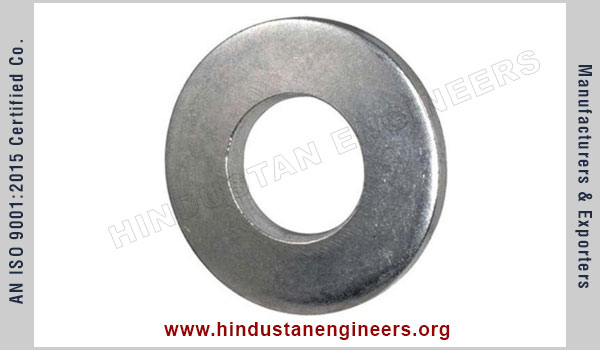

IS 2016 Washers
IS 2016 Washers
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
IS 2016
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
|
|||||

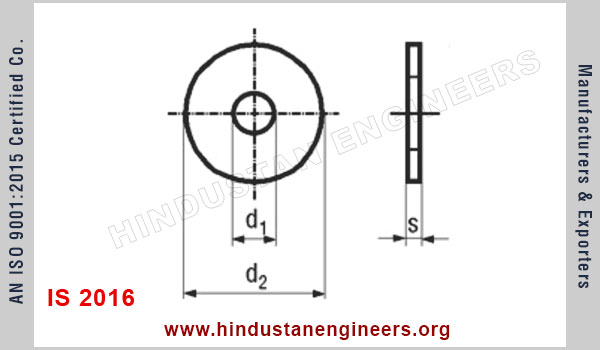

| BOLT-SIZE MM | INTERNAL – DIA MM | EXTERNAL – DIA MM | THICKNESS MM |
||
|---|---|---|---|---|---|
| M1.6 | 1.8 | 4 | 0.4 | ||
| M1.8 | 2.1 | 5 | 0.4 | ||
| M2 | 2.4 | 5 | 0.4 | ||
| M2.2 | 2.6 | 6 | 0.5 | ||
| M2.5 | 2.9 | 6.5 | 0.5 | ||
| M3 | 3.4 | 7 | 0.5 | ||
| M3.5 | 4.0 | 8 | 0.5 | ||
| M4 | 4.5 | 9 | 0.8 | ||
| M4.5 | 5.0 | 10 | 1 | ||
| M5 | 5.5 | 10 | 1 | ||
| M6 | 6.6 | 12.5 | 1.6 | ||
| M7 | 7.6 | 14 | 1.6 | ||
| M8 | 9 | 17 | 1.6 | ||
| M10 | 11 | 21 | 2 | ||
| M12 | 14 | 24 | 2.5 | ||
| M14 | 16 | 28 | 2.5 | ||
| M16 | 18 | 30 | 3.15 | ||
| M18 | 20 | 34 | 3.15 | ||
| M20 | 22 | 37 | 3.15 | ||
| M22 | 24 | 39 | 3.15 | ||
| M24 | 26 | 44 | 4 | ||
| M27 | 30 | 50 | 4 | ||
| M30 | 33 | 56 | 4 | ||
| M33 | 36 | 60 | 5 | ||
| M36 | 39 | 66 | 5 | ||
| M39 | 42 | 72 | 6 | ||
| M42 | 45 | 78 | 6 | ||
| M45 | 48 | 85 | 8 | ||
| M48 | 52 | 92 | 8 | ||
