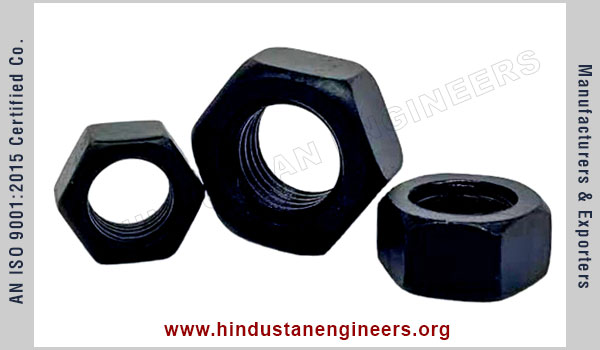

IS 1363 Part 3 Hex Nuts
IS 1363 Part 3 Hex Nuts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
IS 1363 Part 3
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

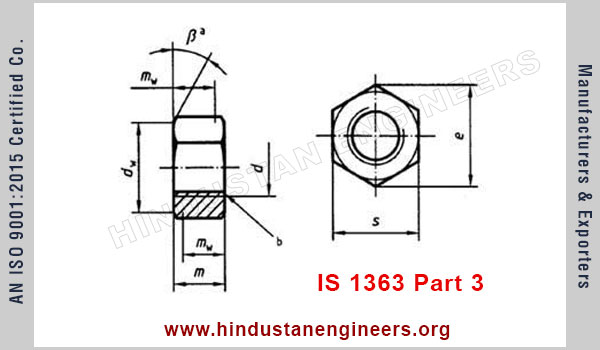

Dimensions of IS 1363-3 Hexagon Nuts Preferred Threads
| Thread | pa | dw min | e min | m | mw min | s | ||
|---|---|---|---|---|---|---|---|---|
| Max | Min | nom = Max | Min | |||||
| M 5 | 0.8 | 6.7 | 8.63 | 5.6 | 4.4 | 3.5 | 8 | 7.64 |
| M 6 | 1 | 8.7 | 10.89 | 6.4 | 4.9 | 3.7 | 10 | 9.64 |
| M 8 | 1.25 | 11.5 | 14.2 | 7.9 | 6.4 | 5.1 | 13 | 12.57 |
| M 10 | 1.5 | 14.5 | 17.59 | 9.5 | 8.0 | 6.4 | 16 | 15.57 |
| M 12 | 1.75 | 16.5 | 19.85 | 12.2 | 10.4 | 8.3 | 18 | 17.57 |
| M 16 | 2 | 22 | 26.17 | 15.9 | 14.1 | 11.3 | 24 | 23.16 |
| M 20 | 2.5 | 27.7 | 32.95 | 19 | 16.9 | 13.5 | 30 | 29.16 |
| M 24 | 3 | 33.3 | 39.55 | 22.3 | 20.2 | 16.2 | 36 | 35 |
| M 30 | 3.5 | 42.8 | 50.85 | 26.4 | 24.3 | 19.4 | 46 | 45 |
| M 36 | 4 | 51.1 | 60.79 | 31.9 | 29.4 | 23.2 | 55 | 53.8 |
| M 42 | 4.5 | 60 | 71.3 | 34.9 | 32.4 | 25.9 | 65 | 63.1 |
| M 48 | 5 | 69.5 | 82.6 | 38.9 | 36.4 | 29.1 | 75 | 73.1 |
| M 56 | 5.5 | 78.7 | 93.56 | 45.9 | 43.4 | 34.7 | 85 | 82.8 |
| M 64 | 6 | 88.2 | 104.86 | 52.4 | 49.4 | 39.5 | 95 | 92.8 |
