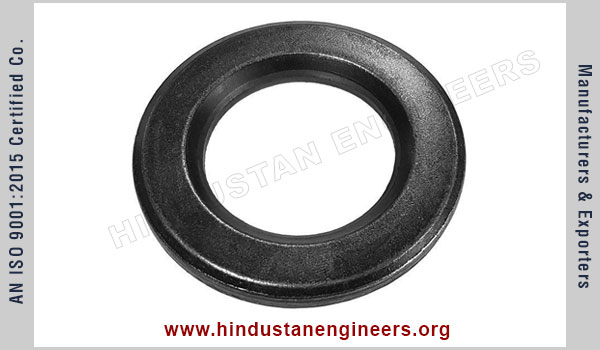

DIN 6916 High Strength Structural Washer
DIN 6916 High Strength Structural Washer
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
DIN 6916
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

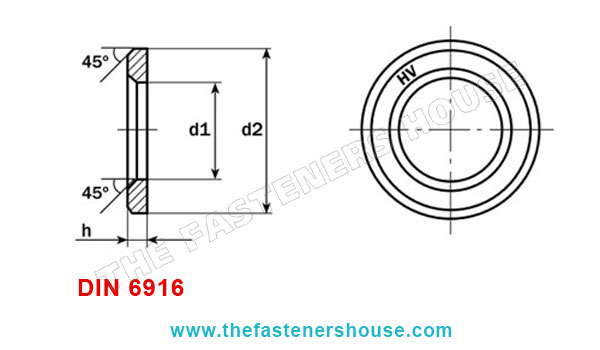

Dimensions / Weight Chart
| d Nom. | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
| d1 | 13 | 17 | 21 | 23 | 25 | 28 | 31 | 37 |
| d2 | 24 | 30 | 37 | 39 | 44 | 50 | 56 | 66 |
| s | 3 | 4 | 4 | 4 | 4 | 5 | 5 | 6 |
| KG/1000 PCS | 7.03 | 14.60 | 19.60 | 24.30 | 30.60 | 50.20 | 63.20 | 115.00 |
