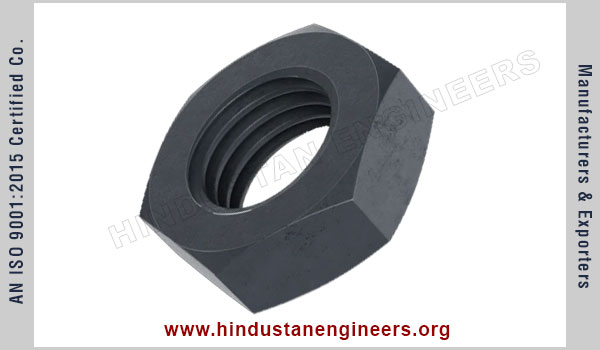

DIN 439/936 Hex Nuts
DIN 439/936 Hex Nuts
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org
DIN 439 / DIN 936
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

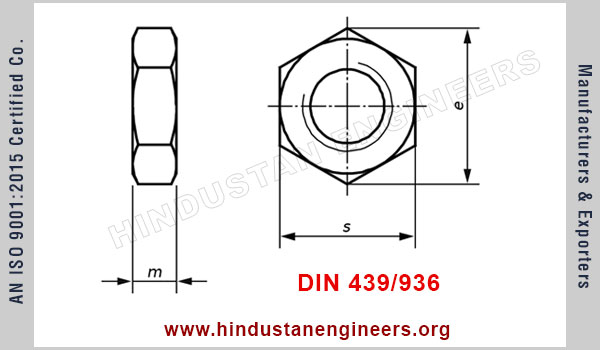

DIN 439 – Hexagon thin nuts (Dimensions in millimetres)
| Size | DIN 439 | ||
|---|---|---|---|
| M6 | M8 | M10 | |
| Pitch | 1 | 1.25 | 1.5 |
| e (min.) |
10.89 | 14.2 | 18.72 |
| m (min / max) |
2.72-3.2 | 3.52-4 | 4.52-5 |
| s (min / max) |
9.64-10 | 12.57-13 | 16.57-17 |
DIN 936 – Hexagon thin nuts (Dimensions in millimetres)
| Size | DIN 936 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 | M10 | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 | M42 | M48 | |
| Pitch | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 |
| e (min.) |
14.38 | 18.90 | 21.1 | 26.75 | 32.95 | 35.03 | 39.55 | 45.20 | 50.85 | 60.79 | 71.3 | 82.60 |
| m (min / max) |
3.8-4.7 | 4.6-5.7 | 5.3-6.64 | 5.9-7.42 | 6.5-8.1 | 7.3-9.1 | 7.3-9.1 | 10.9-12 | 10.9-12 | 12.9-14 | 14.9-16 | 16.9-18 |
| s (min / max) |
12.73-13 | 16.73-17 | 18.67-19 | 23.67-24 | 29.16-30 | 31-32 | 35-36 | 40-41 | 45-46 | 53.8-55 | 63.1-65 | 73.1-75 |
