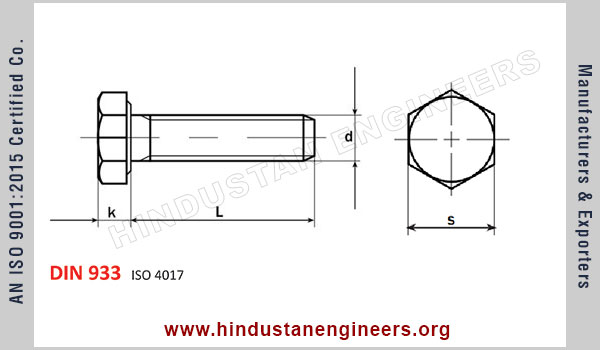

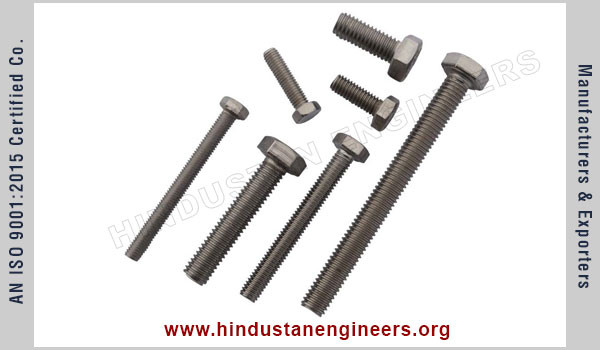

DIN 933 / ISO 4017 Hex Bolts

Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@hindustanengineers.org

DIN 933 / ISO 4017

Steel Grades: 4.6, 8.8, 10.9

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Dimension(M)	Length (mm)	k (mm)	s (mm)	e (mm)	Weight(kg/1000 pc)
M5	8	3.5	8	8.79	2.4
M5	10	3.5	8	8.79	2.6
M5	12	3.5	8	8.79	2.9
M5	14	3.5	8	8.79	3.1
M5	16	3.5	8	8.79	3.3
M5	20	3.5	8	8.79	3.8
M5	25	3.5	8	8.79	4.4
M5	30	3.5	8	8.79	5.1
M5	35	3.5	8	8.79	5.7
M5	40	3.5	8	8.79	6.3
M5	45	3.5	8	8.79	7
M5	50	3.5	8	8.79	7.6
M5	60	3.5	8	8.79	8.8
M6	8	4	10	11.05	3.7
M6	10	4	10	11.05	4.1
M6	12	4	10	11.05	4.4
M6	14	4	10	11.05	4.8
M6	16	4	10	11.05	5.1
M6	20	4	10	11.05	5.8
M6	25	4	10	11.05	6.7
M6	30	4	10	11.05	7.5
M6	35	4	10	11.05	8.4
M6	40	4	10	11.05	9.2
M6	45	4	10	11.05	10.1
M6	50	4	10	11.05	11
M6	55	4	10	11.05	11.9
M6	60	4	10	11.05	12.7
M6	70	4	10	11.05	14.4
M6	80	4	10	11.05	16.2
M6	90	4	10	11.05	18
M6	100	4	10	11.05	19.8
M8	10	5.3	13	14.38	9.1
M8	12	5.3	13	14.38	9.8
M8	16	5.3	13	14.38	11.1
M8	20	5.3	13	14.38	12.3
M8	25	5.3	13	14.38	13.9
M8	30	5.3	13	14.38	15.5
M8	35	5.3	13	14.38	17.1
M8	40	5.3	13	14.38	18.7
M8	45	5.3	13	14.38	20.3
M8	50	5.3	13	14.38	21.8
M8	55	5.3	13	14.38	23.4
M8	60	5.3	13	14.38	25
M8	65	5.3	13	14.38	26.6
M8	70	5.3	13	14.38	28.2
M8	75	5.3	13	14.38	28.98
M8	80	5.3	13	14.38	31.4
M8	90	5.3	13	14.38	34.6
M8	100	5.3	13	14.38	37.7
M8	110	5.3	13	14.38	40.9
M8	120	5.3	13	14.38	44.1
M10	12	6.4	17	18.9	17.2
M10	16	6.4	17	18.9	19.2
M10	20	6.4	17	18.9	21.2
M10	25	6.4	17	18.9	23.7
M10	30	6.4	17	18.9	26.2
M10	35	6.4	17	18.9	28.7
M10	40	6.4	17	18.9	31.2
M10	45	6.4	17	18.9	33.7
M10	50	6.4	17	18.9	36.2
M10	55	6.4	17	18.9	38.7
M10	60	6.4	17	18.9	41.3
M10	65	6.4	17	18.9	43.8
M10	70	6.4	17	18.9	46.3
M10	75	6.4	17	18.9	48.8
M10	80	6.4	17	18.9	51.3
M10	85	6.4	17	18.9	53.8
M10	90	6.4	17	18.9	56.3
M10	100	6.4	17	18.9	61.3
M10	110	6.4	17	18.9	66.4
M10	120	6.4	17	18.9	71.4
M10	130	6.4	17	18.9	76.4
M10	140	6.4	17	18.9	81.4
M12	16	7.5	19	21.1	27.7
M12	20	7.5	19	21.1	31
M12	25	7.5	19	21.1	34
M12	30	7.5	19	21.1	37.7
M12	35	7.5	19	21.1	41.3
M12	40	7.5	19	21.1	44.9
M12	45	7.5	19	21.1	48.5
M12	50	7.5	19	21.1	52
M12	55	7.5	19	21.1	55.6
M12	60	7.5	19	21.1	58.2
M12	65	7.5	19	21.1	62.8
M12	70	7.5	19	21.1	66.4
M12	80	7.5	19	21.1	73.6
M12	90	7.5	19	21.1	80.8
M12	100	7.5	19	21.1	88
M12	110	7.5	19	21.1	95.2
M12	120	7.5	19	21.1	102
M12	130	7.5	19	21.1	109
M12	140	7.5	19	21.1	116
M12	150	7.5	19	21.1	123
M12	160	7.5	19	21.1	130
M14	25	8.8	22	23.91	53
M14	30	8.8	22	23.91	57.9
M14	35	8.8	22	23.91	62.9
M14	40	8.8	22	23.91	67.9
M14	50	8.8	22	23.91	77.9
M14	60	8.8	22	23.91	87.8
M14	70	8.8	22	23.91	97.9
M14	80	8.8	22	23.91	107
M14	90	8.8	22	23.91	117
M14	100	8.8	22	23.91	127
M16	20	10	24	26.17	63
M16	25	10	24	26.17	70.2
M16	30	10	24	26.17	76.9
M16	35	10	24	26.17	83.5
M16	40	10	24	26.17	90.2
M16	45	10	24	26.17	97.1
M16	50	10	24	26.17	103
M16	55	10	24	26.17	110
M16	60	10	24	26.17	117
M16	65	10	24	26.17	123
M16	70	10	24	26.17	130
M16	75	10	24	26.17	137
M16	80	10	24	26.17	144
M16	85	10	24	26.17	150
M16	90	10	24	26.17	157
M16	100	10	24	26.17	170
M16	110	10	24	26.17	184
M16	120	10	24	26.17	197
M16	130	10	24	26.17	210
M16	140	10	24	26.17	224
M16	150	10	24	26.17	237
M16	160	10	24	26.17	250
M18	40	11.5	27	29.56	120
M18	50	11.5	27	29.56	136
M18	60	11.5	27	29.56	153
M18	70	11.5	27	29.56	169
M18	80	11.5	27	29.56	180
M20	30	12.5	30	32.95	134
M20	35	12.5	30	32.95	145
M20	40	12.5	30	32.95	155
M20	45	12.5	30	32.95	165
M20	50	12.5	30	32.95	176
M20	55	12.5	30	32.95	186
M20	60	12.5	30	32.95	196
M20	65	12.5	30	32.95	207
M20	70	12.5	30	32.95	217
M20	75	12.5	30	32.95	227
M20	80	12.5	30	32.95	238
M20	85	12.5	30	32.95	247
M20	90	12.5	30	32.95	258
M20	100	12.5	30	32.95	279
M20	110	12.5	30	32.95	300
M20	120	12.5	30	32.95	320
M20	130	12.5	30	32.95	340
M20	140	12.5	30	32.95	361
M20	150	12.5	30	32.95	381
M20	160	12.5	30	32.95	402
M24	40	15	36	39.55	244
M24	45	15	36	39.55	259
M24	50	15	36	39.55	274
M24	55	15	36	39.55	289
M24	60	15	36	39.55	304
M24	65	15	36	39.55	319
M24	70	15	36	39.55	334
M24	75	15	36	39.55	348
M24	80	15	36	39.55	363
M24	90	15	36	39.55	393
M24	100	15	36	39.55	423
M24	110	15	36	39.55	453
M24	120	15	36	39.55	483
